Overhead Traveling Crane
European Standard Overhead Bridge Cranes
Overhead cranes are efficient and safe lifting equipment, also called overhead travelling crane or bridge crane. These cranes come in four basic configurations, including single girder, double girder, top running and underhung system. Overhead bridge cranes can be designed to handle a variety of materials or loads, widely applied in manufacturing, warehousing, chemical, metallurgy, and other industries.
With a wealth of experience in the material handling industry, our group can help you select and specify the most appropriate crane system to maximize your work efficiency and safety, and also at reasonable cost.
Types Of Single Girder Bridge Cranes

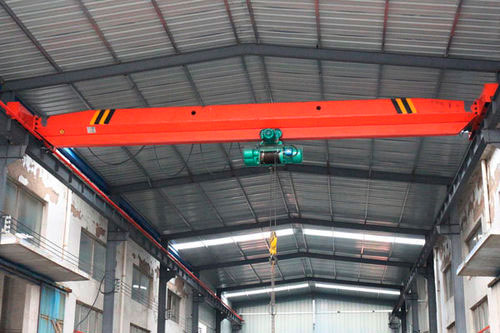

Single Girder Electric Overhead Travelling Crane
The most widely used type of overhead crane, simple structure, easy to install and maintain.
- Standard capacity: 1t/2t/3t/5t/10t/16t/20t or customized on demand
- Span length: 7.5m-31.5m
- Lifting height: 6m/9m/12m/18m/24m/30m
- Work duty: A3/A4
- Raged voltage: 220V/380V/400V/415V/660V, 50-60Hz, 3ph AC
- Crane control mode: Floor control / Remote control / Cabin room control
- Traveling speed: 20-30m/min

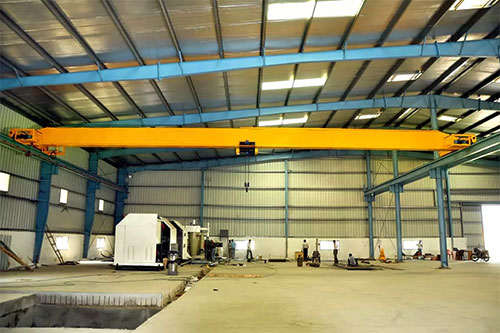

Low Headroom Single Girder Overhead Crane
Compared to the common type of single girder overhead travelling crane, the lifting height can be increased to a greater extent.
- Standard capacity: 1t-20t or customized
- Span length: 7.5m-31.5m
- Lifting height: 6m/9m/12m/18m/24m/30m
- Work duty: A3/A4
- Raged voltage: 220V/380V/400V/415V/660V, 50-60Hz, 3ph AC
- Crane control mode: Floor control / Remote control
- Traveling speed: 20-3m/min

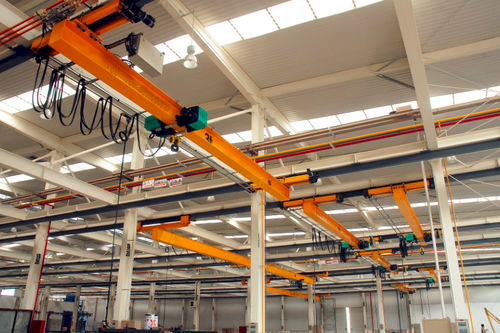

Underslung Single Beam Bridge Crane
For plants without load-bearing columns and where the roof is load-bearing.
- Capacity: 0.5ton/1ton/2ton/3ton/5ton/10ton
- Span length: 3m-16m
- Lifting height: 6m/9m/12m/18m/24m/30m
- Work duty: A3/A4,
- Raged voltage: 220V/380V/400V/415V/660V, 50-60Hz, 3ph AC
- Crane control mode: Ground control / Remote control
- Traveling speed: 20-30m/min

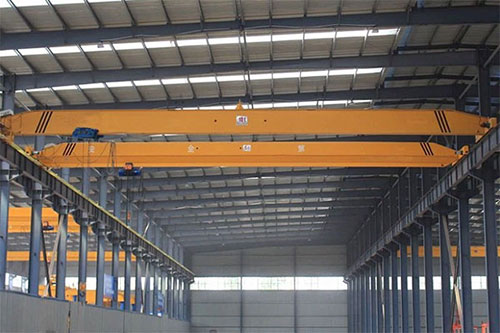

FEM/DIN Single Beam Overhead Crane
The compact design allows for maximum space utilization, stepless speed regulation, and quiet, maintenance-free operation.
- Capacity: 1-20ton
- Span length: 7.5-28.5m
- Lifting height: 6m/9m/12m/18m or customized according to clients’ site conditions
- Work duty: A5
- Raged voltage: 220V/380V/400V/415V/660V, 50-60Hz, 3ph AC
- Crane control mode: Pendantcontrol / Remote control
- Traveling speed: 20-30m/min

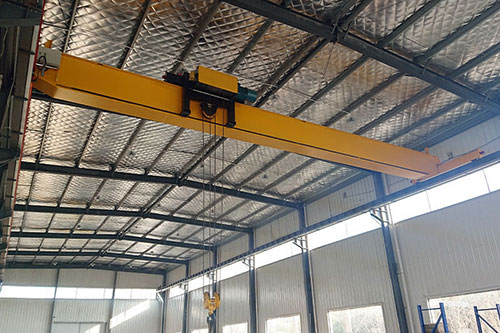

Offset Trolley Single Girder Bridge Crane
The compact design allows for maximum space utilization, stepless speed regulation, and quiet, maintenance-free operation.
- Standard capacity: 1t/2t/3t/5t/10t/16t/20t or customized on demand
- Span length: 7.5m-28.5m
- Lifting height: 6m/9m/12m/18m/24m/30m
- Work duty: A3/A4
- Raged voltage: 220V/380V/400V/415V/660V, 50-60Hz, 3ph AC
- Crane control mode: Floor control / Remote control
- Traveling speed: 20-30m/min

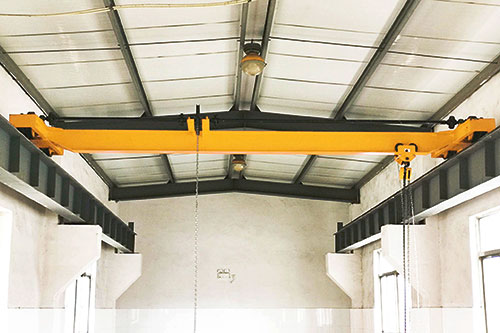

Manual Single Girder Overhead Crane
For use in operating conditions where electrical power systems are not available or cannot be supplied.
- Standard capacity: upto 5ton
- Span length: 4m-12m
- Lifting height: 3m/6m/9m upto10m
- Work duty: A1
- Raged voltage: Manual mode
- Crane control mode: Floor control
Types Of Double Girder Overhead Cranes

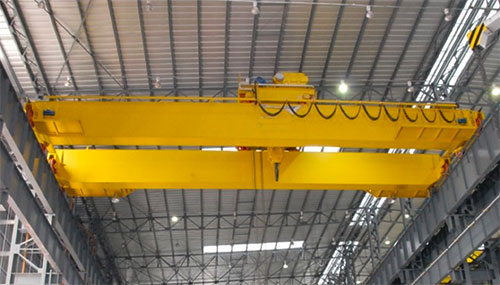

Double Girder Bridge Crane With Hoist Trolley
- Application to workshop, warehouse, goods yard, power station, as well as light textiles and good industry.
- Lifting capacity: 5ton-32ton
- LH type electric double girder overhead crane is suitable for working level A3～A4, working environment temperature -25℃～+40℃.

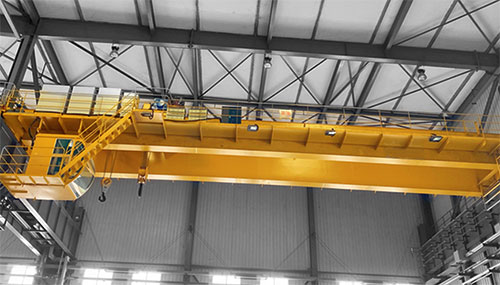

Double Girder Overhead Crane With Cab
- Used in mechanic processing workshop, subsidiary workshop of metallurgical mills, warehouses, goods yard and power station.
- Suitable for all kinds of working conditions.
- Mature technology, safe and reliable, easy to operate, and stable in operation.

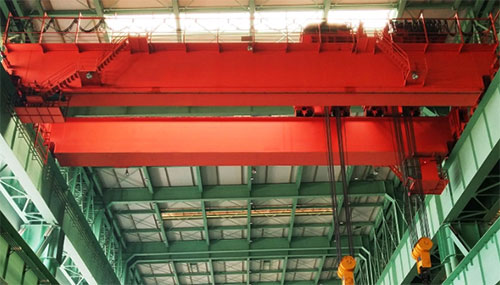

Double Beam Overhead Crane With Double Trolley
- Suitable for all kinds of general working conditions. It is used for the lifting of materials, the installation and maintenance of equipment, and with a wide range of uses.
- The crane adopts the structure of double beam, double track, and double hoisting trolley.
- Each hoisting trolley of the crane is equipped with an independent transmission system.

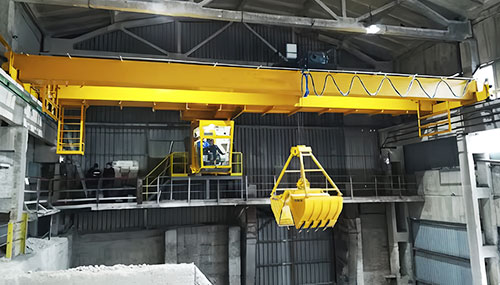

Double Girder Overhead Crane With Grab
- Used for loading and unloading of bulk materials in power plant, yard, workshop, and port, etc.
- The QZ type double girder overhead crane is mainly composed of the bridges, the grab trolley, the crane traveling mechanism, the cabin and electrical control system.
- The fetching device is a grab that can grab bulk materials.

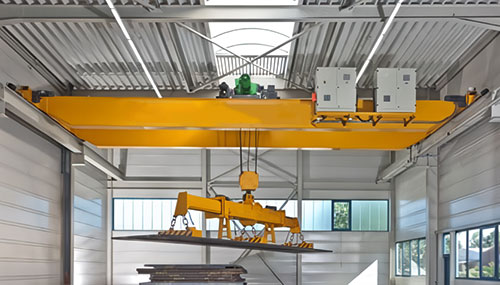

Double Beam Overhead Crane With Electromagnet
- Used in metallurgy and mechanism factory load and unload metallic materials such as steel plate, scrap iron.
- There is no need for manual hooking and unhooking the magnets, which reduces the possibility of injury.
- High efficiency, time-saving, labor-saving. Hoisting is stable and reduce tilt.
European Type Double Girder Overhead Crane
- New generation crane solution with following advantages:
- Light self-weight, light wheel load, small sizes, good performance, easy operation, lower cost for maintenance.
- Energy saving, cost saving for workshop construction.

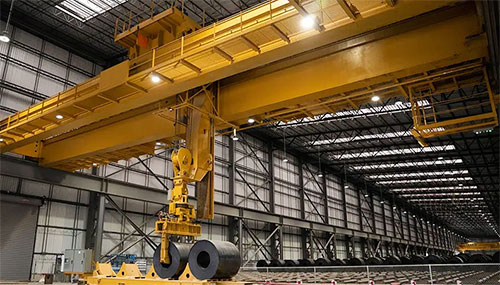

Double Girder Bridge Crane For Steel Industry
- Widely used in steel plant, smelting workshop, metallurgy plant.
- The rated lifting capacity of this equipment is less than 75t, and the working class is not less than M7.
- Heat insulation device at the bottom.

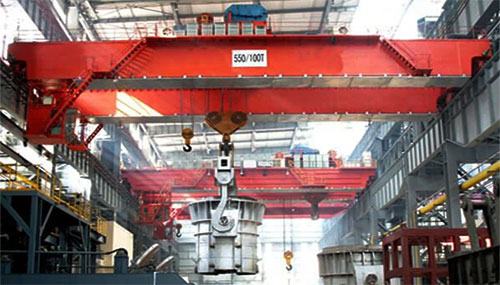

Metallurgical Casting Bridge Crane
- Widely used in steel plant, smelting workshop, metallurgy plant.
- Heat insulation device at the bottom.
- Special crane for lifting molten metal, working class A7, A8, used in busy metallurgical foundry workshop.
Why Buy Overhead Cranes From Excelcrane
Excelcrane is committed to providing customers around the world with the most economical and efficient overhead crane solutions, integrating crane design, manufacturing, sales, installation and after-sales service to ensure high-quality products and services for customers.
Quality Assurance

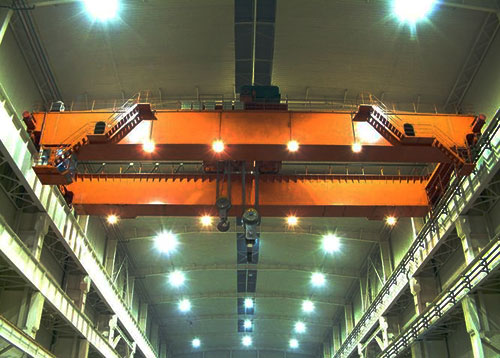

Custom Lifting Solution
After-Sales Service
Overhead Crane Design To Your Specs
We design overhead cranes for multiple industries
The overhead travelling cranes are important tools and equipment for mechanization and automation of the production process in modern industrial production and lifting and transportation. We provide the best lifting solutions for departments and places such as industrial and mining enterprises, steel and chemical industries, railway transportation, ports and terminals, logistics turnover, etc.
Bridge crane design to optimize your space utilization
The optimized combination of crane structure and mechanism reduces the lateral limit position of the lifting devices and effectively improves space utilization.
Modular design to adapt to various needs
Firm structure, standardized production and modular design can meet the various needs of customers.
Customized design
According to the actual needs of customers, we propose an overall solution for customers, and tailor a reasonable configuration to meet the customer’s requirements for crane economy, efficiency and safety.
Contact Us
Get In Touch
Our teams are on hand to provide you with the right lifting solutions.
FEW TIPS
- Load capacity: ton
- Span of the crane: m?
- Max lifting height of the crane: m?
- What materials will be handled?
- How many hours will the crane work per day?
- Your project introduction: project working site, project budget, etc.
