Description
Excelcrane electric transfer cart can be a rail guided or trackless material transport cart that is powered by cable reel, battery or low-voltage rail powered as per customer requirements. It is used to handle and move a variety of materials, such as dies, industrial pipes, coils, heavy equipment and components. Our transfer carts can be designed with large load capacity, ranging from 2 tons to over 150 tons. We also provide tailor-made electric transfer cart to suit your specific load handling requirements. The design possibilities are virtually unlimited.

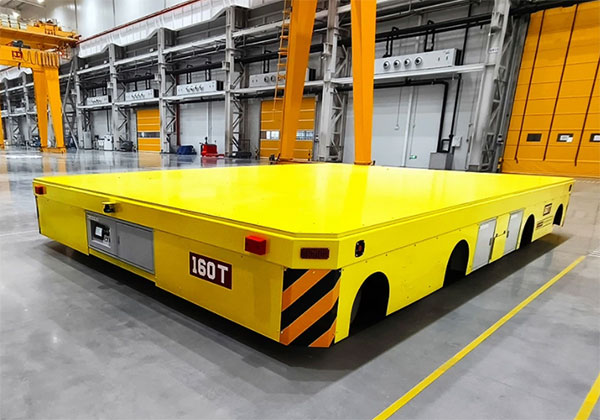

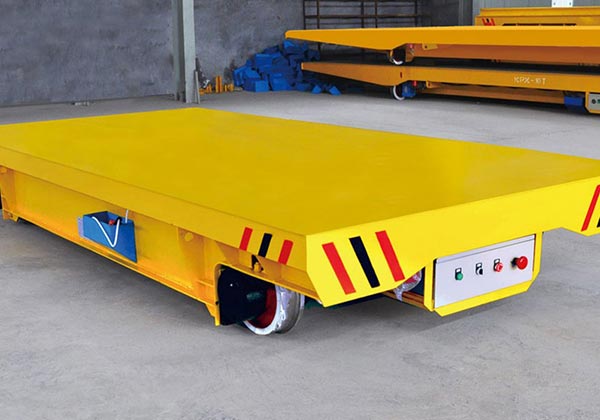

Battery powered transfer cart
Electric transfer carts are powered by batteries. The battery provides power to the motor, and the motor drives the electric flat cart to run. The running distance of this kind of transfer cart is not limited. Compared with the cable drum powered transfer cart and low voltage rail powered transfer cart, it has greater safety performance, excellent mobility and flexibility.

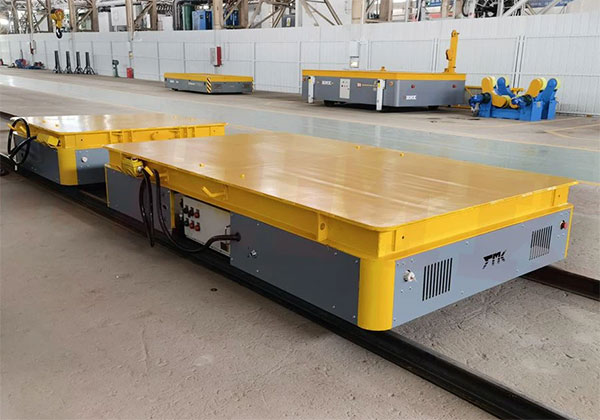

Cable drum powered transfer cart
Cable drum powered transfer cart is powered by cable drum. Specifically speaking, it winds the 380V cable in and out by winding device placed under the cart. Through control system, it controls the start, stop, forward and backward of the device. The operating system is controlled through low voltage 36V power supply. The electric transfer trolley can be designed to handle any load and suit any operational requirements. The maximum running distance can be 200 meters. When the running distance exceeds 50m, it is necessary to be delivered with a cable spooling device for better cable winding.

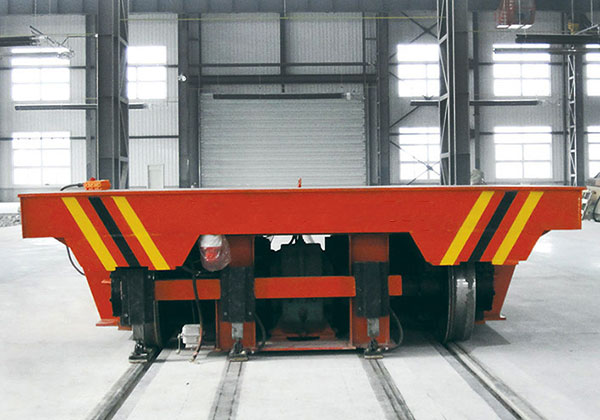

Low voltage rail powered transfer cart
Low voltage rail powered transfer cart is a 36V single-phase or three-phase low-voltage track-powered electric transfer cart. The ground step-down transformer control cabinet steps down the single-phase (three-phase) 380V to single-phase (three-phase) 36V, feeds it to the electric flat cart through the track trolley line, and then boosts it to single-phase (three-phase) 380V through the on-board step-up transformer. This type of electric transfer cart has high requirements for track construction, and track insulation must be ensured. When exceeding a certain running distance, copper compensation lines should be added to the track. When the running distance is too long, the number of step-down transformers should be increased.

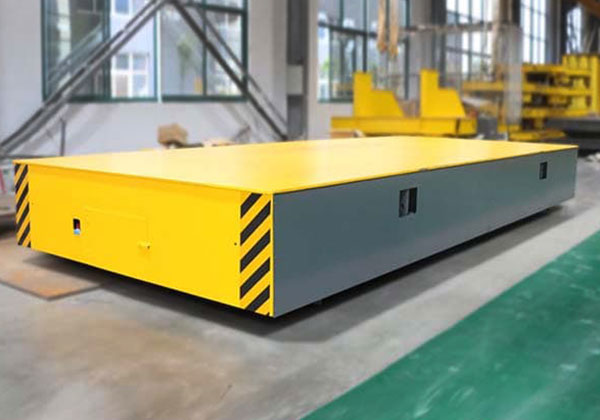

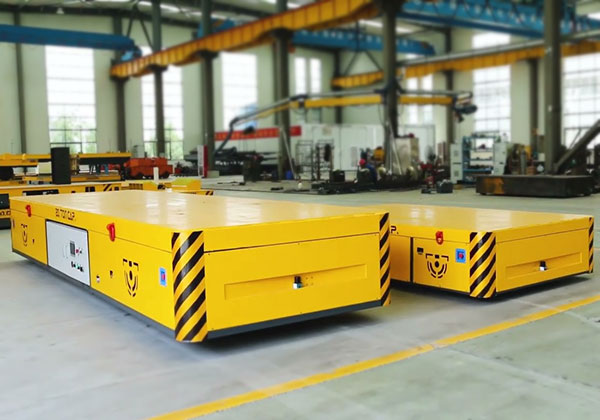

Trackless transfer cart
Trackless transfer cart uses the battery as the power source, and the solid rubberized wheels walk directly on the ground. The operation of the trackless transfer cart is not restricted, and it can turn 360° in situ to adapt to the operation in a narrow space. The imported wheels are wear-resistant while ensuring that the ground is not damaged.
Applications of electric transport cart
The simple structure and reasonable cost make this type of transfer cart a popular choice for material handling. It is commonly found in machine shops, chemical plants, warehouses, metallurgical plants and other industries to transport materials inside and outside the facility, or between the crane bays.

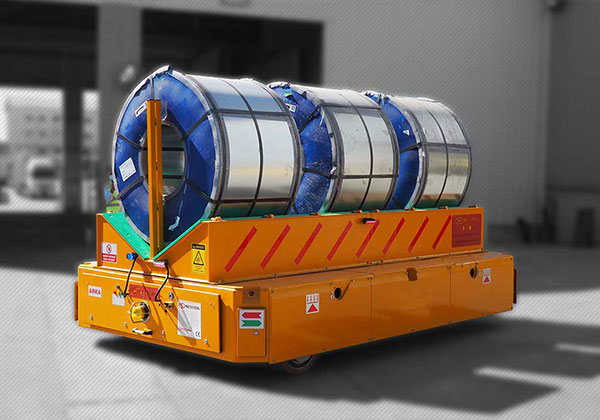

The electric transport cart can help you reduce the uses of overhead cranes, as well as minimize lost time waiting for material delivery. It makes the material handling very easy and efficient for you. It can handle a variety of materials, including but not limited to: industrial pipes, coils, slabs, molds, dies, structural steel, heavy equipment, components and accessories.
