What is a gantry lift?

Gantry lift is a device used to lift heavy objects in the vertical direction. Its structure is similar to that of a gantry crane, but it is mainly used to move and lift bulk materials or heavy equipment efficiently and accurately. The main features of a gantry lift include its door frame structure and lifting system. It is widely used in industrial production, warehousing, logistics and other fields.

Main structure and features

1. Door frame structure

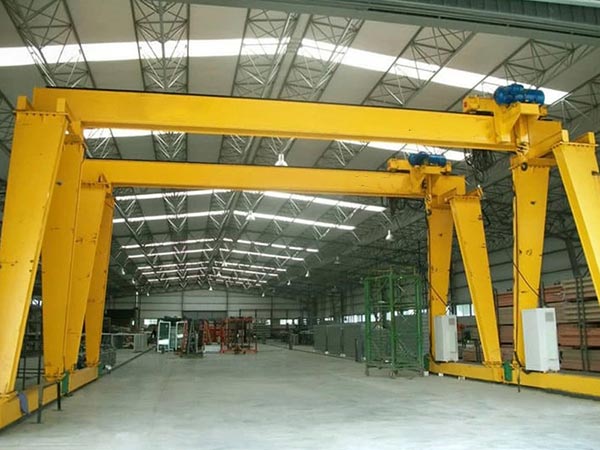

Composition: Gantry lifts usually include two vertical pillars and a horizontal beam (door frame), and the pillars support the horizontal beam to form a “door” shaped structure.

Function: The door frame structure provides stable support for the lifting system while allowing materials or equipment to be lifted vertically in the door frame.

2. Lifting system

Lifting device: The lifting system of a gantry lift is generally composed of a motor, a reducer, a lifting chain or a lead screw. The motor drives the reducer, and then the load is lifted and lowered through a chain or a lead screw.

Control system: Equipped with a control system for accurately controlling the lifting height and speed to ensure the safety and accuracy of the operation.

3. Platform and support

Working platform: Gantry lifts are usually equipped with a working platform for placing and carrying materials. The platform can be fixed or adjustable in height.

Support structure: ensures that the gantry lift remains stable during the lifting process and prevents tilting or shaking.

Main advantages

1. High load-bearing capacity

Design: Due to its strong structure, the gantry lift can carry a large weight and is suitable for the handling of heavy materials or equipment.

Application: It is widely used in occasions requiring high loads, such as large factories, storage facilities, etc.

2. Large lifting

Capacity: It can achieve a large range of vertical lifting and is suitable for high storage and production environments.

Flexibility: It can adjust the lifting height as needed to adapt to different work needs.

3. Strong stability

Structure: The door frame structure provides good stability and reduces shaking and tilting during lifting.

Safety: It improves the safety of operation and reduces the possibility of accidents.

4. Easy to operate

Control: Modern gantry lifts are equipped with advanced control systems such as remote controls, PLC controllers, etc., which are easy to operate and easy to adjust.

Maintenance: Maintenance and maintenance are relatively simple, and it is easy to inspect and adjust.

5. Efficient space utilization

Design: The vertical lifting design saves horizontal space and improves the efficiency of site use.

Application: Suitable for environments with limited space, such as warehouses, workshops, etc.
