Description

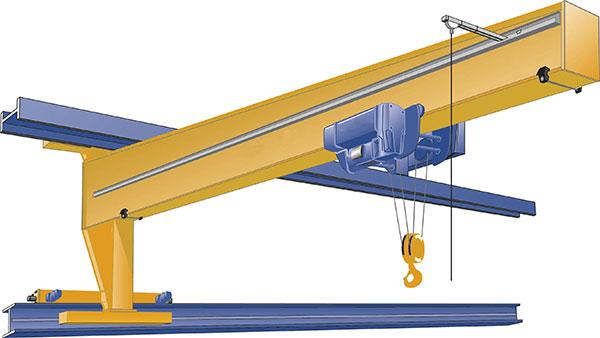

Wall travelling jib crane uses a guide rail installed in a multi-storey wall assembly shop to move on the wall.Can be mounted very close to the bottom of the lowest barrier, it can squeeze into the most tight factory, warehouse or other industrial space, thus providing maximum lift height and maximum clearance.
Traveling jib crane is suitable for the use of unilateral working area in the workshop. Its running rails are all fixed on the workshop column or the independently mounted column, and there is no obstacle on the working surface. Traveling cranes are usually installed in workshops with upper and lower double-layer lifting equipment, which are used for lifting and transporting small-tonnage workpieces on the lower layer, and are used crosswise with the upper-layer large-tonnage cranes without interfering with each other. The product is easy to install and maintain, flexible to operate, safe and reliable.
Wall travelling jib cranes provide long lateral movement of materials without taking up floor space or interfering with large overhead cranes. Wall-travelling jibs increase overall plant productivity by quickly handling smaller lifts. Excellnet wall traveling jib cranes are cost-effective, custom engineered solutions that are specifically designed to meet your production needs and building specifications.
Application of wall travelling jib crane
Suitable for various densely populated work environments, widely used in various places such as factories, workshops, warehouses, stores, logistics, docks, ports, freight yards, buildings, mines, etc.
When looking for a lifting option for a smaller space, one should look to the option for Jib Crane. This crane is an excellent choice, as it is strong and versatile, robust and flexible. The tough construction of the jib boom ensures that it will not wear out. These cranes can be used for material and machinery loading-unloading small assembly jobs, localized fitting etc.
Product Parameters
| Model | Lift Capacity（t） | L(mm) | R1(mm) | R(mm) | H(mm) |
|---|---|---|---|---|---|
| EXS0.25 | 0.25 | 3200 | 250 | 3000 | 800 |
| EXS0.5 | 0.5 | ||||
| EXD1 | 1 | 3400 | 300 | 950 | |
| EXD2 | 2 | 3500 | 450 | 3000 | 1150 |
| EXD3 | 3 | 4500 | 500 | 4000 | 1350 |
| EXD5 | 5 | 4700 | 550 | 4000 | 1500 |
Advantages of wall travelling jib crane
- Safe and reliable, economical and durable, stable transmission, quiet operation.
- High heat dissipation efficiency and strong carrying capacity.
- Ensure timely delivery and fast delivery, and guarantee after-sales service.
- The products have been subjected to strict control test before leaving the factory.
