Description
Container gantry crane is a type of large wharf gantry crane which at container terminals for loading and unloading intermodal containers. It is available with span of 5~8 containers wide (plus a truck width) and with lifting height from 1 over 3 to 1 over 6 containers high.

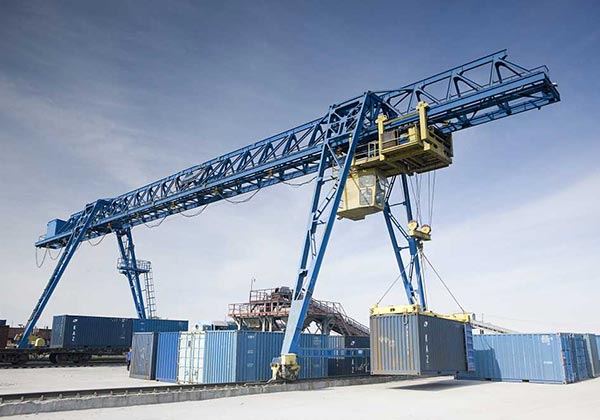

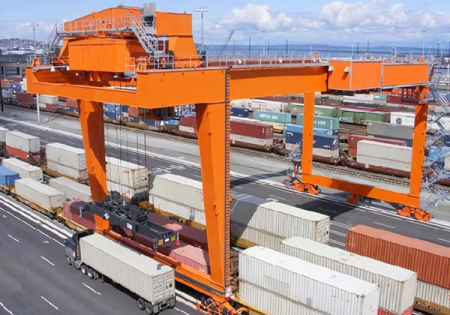

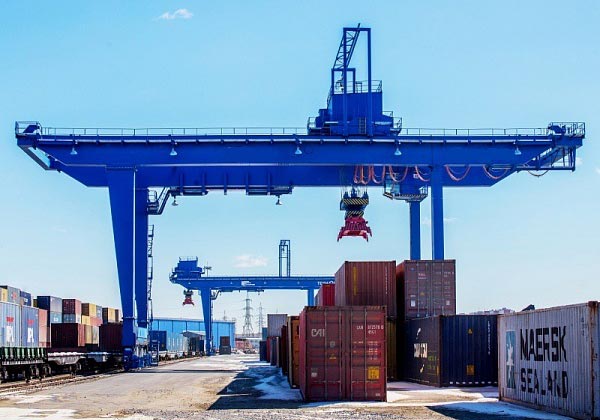

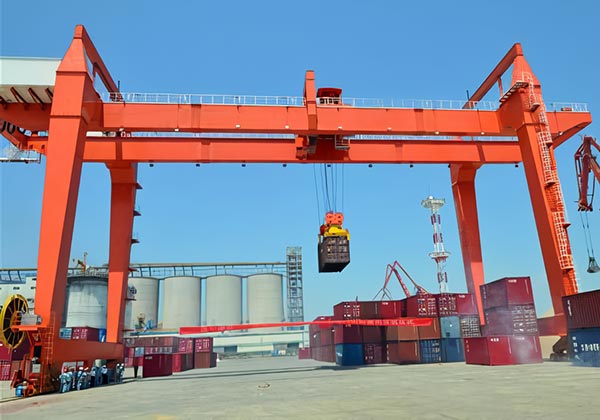

Rail-Mounted Gantry (RMG) crane is an innovative and highly efficient solution for container handling. With its advanced design and features, it offers unparalleled performance in various applications. The rail mounted container gantry crane is capable of lifting international standard containers (20′, 40′, and 45′) with ease, thanks to its specially designed container spreader.
Applications of RMG container gantry crane
- Container Terminals: The container gantry crane is perfect for efficient container handling at busy container terminals, helping to streamline operations and increase productivity.
- Intermodal Facilities: The RMG container gantry crane is ideal for handling containers at intermodal facilities, where containers are transferred between different modes of transport, such as rail, road, and sea.
- Logistics Centers: The RMG’s efficient container handling capabilities make it an excellent choice for logistics centers, where large volumes of containers need to be managed daily.
- Industrial Facilities: The RMG container gantry crane can be customized to suit the specific requirements of various industrial facilities, offering reliable and efficient container handling solutions.

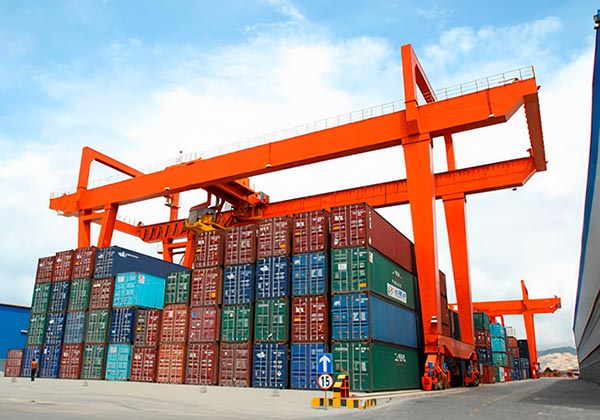

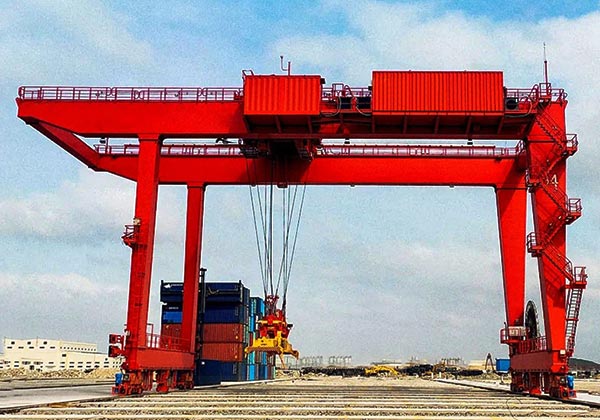

Structure of the container gantry crane
Container gantry crane composed of a gantry structure that can traverse the length of a wharf or yard on a rail. Instead of general hook, container gantry crane equipped with a specialized handling tool usually we called it spreader, which will be lowered on top of the container and used for locks onto the container’s four corner casting. Gantry crane normally lift one set container at once.
Main beam
- Q345E steel material for steel structure, Can withstand the impact test of minus 40 degrees
- Ultrasonic detection
- Strong box design, less distortion automatic welding
- whole beam shot blasting treatment class: Sa2.5,
- Relieving welding residual stress
- Epoxy zinc-rich paint,10 years life span for anti-rust
Lifting mechanism
- Flexible side hanging lifting system
- Double brakes for lifting safety control
- Lifting and travelling limit switches
- Weight overload limit switch
Motor
- ABB/SEWBrand (with heater)
- High protection class IP55
- Continuous operation duration factor
- Built-in thermostat overheating protection, Optimization of air-cooled
- With manual release
- With heater for low temperature starting.
Reducer (Gear box)
- Hard tooth flanks make the reducer long service life
- SEW Brand
- High Reliability
- Half grease lubrication, Sealing good
- With heater for low temperature starting.
Features of container gantry crane
- Advanced Performance: The container gantry crane is designed for efficient and seamless container handling operations. It offers precise and smooth movement, ensuring minimal downtime and maximum productivity.
- High Production Efficiency: The RMG’s efficient design and advanced technology contribute to increased productivity in container handling. Its rapid lifting and lowering capabilities, combined with precise positioning, minimize the time spent on each container movement.
- Good Maneuverability: With its rail-mounted design, the RMG container gantry crane offers excellent maneuverability, allowing for easy navigation and positioning within the container yard.
- Wide Range of Applications: The container gantry crane is suitable for various industries and applications, including container terminals, intermodal facilities, and logistics centers.
- Low Sensitivity to Ground Inequality: The rail-mounted design of the RMG container gantry crane ensures that it remains stable and efficient, even on uneven ground.
- Customization: The rail mounted container gantry crane can be tailored to suit your specific operational requirements, ensuring optimal performance and efficiency.
- The lifting speed is lower and the speed of long traveling is higher. According to the demand of the container yard, the lifting height of the rail-type container gantry crane is determined by the stack of three or four or four or five piles. Since the lifting height is not high, the lifting speed is correspondingly low. However, the container yard generally has a long length along the running track. In order to achieve a certain productivity, the speed of the crane long traveling is relatively high.
- When the span exceeds 40m, during the high-speed operation of the crane, the offset will occur due to the different running resistance of the legs on both sides. For this purpose, a synchronizing device is set to keep the running speed of the running mechanisms on both sides synchronized by the electric control system.
